GigaSpire Wi-Fi 6 Overview
Deploy optimum Wi-Fi coverage easily
The GigaSpire Wi-Fi 6 systems can be deployed quickly and easily, enabling you to offer subscribers appealing new services and easily meets the demands for capacity and performance requirements of many applications as they emerge.
GigaSpire Wi-Fi 6 Systems
Exceptional Wi-Fi coverage with on-board LAN and voice support
All GigaSpire systems deliver superior throughput and complete Wi-Fi coverage to every part of your subscribers’ residences, multi-dwelling units and businesses. Utilize the LAN and POTs ports to add on additional services while providing your subscribers with complete oversight using the CommandIQ® and CommandWorx™ applications.
CAPACITY AND SPEED
GigaSpire Wi-Fi 6 indoor systems
All GigaSpire Wi-Fi 6 systems are equipped with up to 6 radios supporting MU-MIMO functionality to handle a multitude of devices found in homes and businesses today. In fact, the systems are designed to support up to 500 devices in one network, the largest in this product category.
When speed and latency is a factor, choose from systems with integrated GPON/XGS PON ONT functionality or multi-gig WAN connections, providing the needed performance for emerging high-speed, low-latency applications.
SmartLife managed services
Each GigaSpire Wi-Fi 6 system is a fundamental component of SmartLife managed service solutions giving providers a wide selection of indoor untis to support the needs of SmartHome™ SmartTown®, SmartMDU™ and SmartBiz™ customers, ensuring all subscriber applications operate efficiently.
With common software functionality across all GigaSpire systems, element management, control, and provisioning are consistent, expediting implementation and time to revenue.
Desktop and wall mount configurations in different styles are available for consumer-friendly appeal.
Choose from high-speed ethernet or fiber WAN connectivity to meet subscriber requirements.
Deliver multiple services on one platform greatly reducing capital and service delivery costs.
Dual-band or tri-band Wi-Fi gateway and satellite systems are available.
Up to 10GE and multiple GE connections support gaming and IPTV delivery.
System management consistency uses Calix Service Cloud.

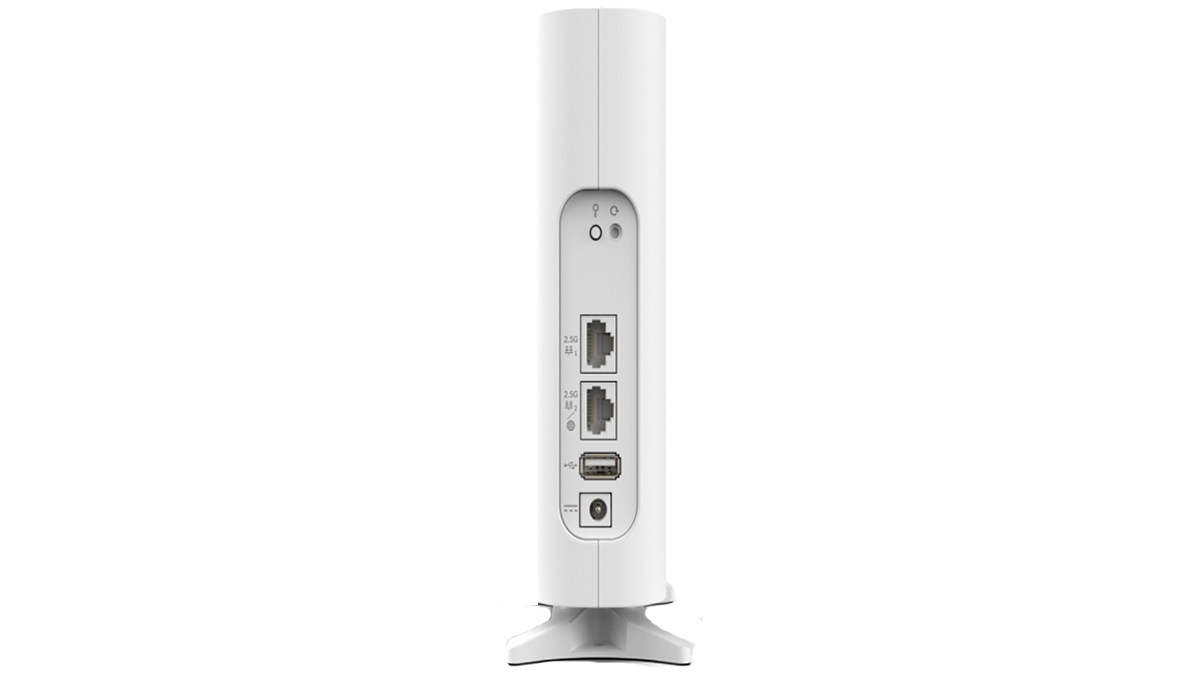

The GigaSpire u4.2 is a next generation Wi-Fi 6 system offering enhanced security, improved Wi-Fi performance and increased whole home coverage.
Product Attributes:
- Desk or wall mounted
- 7" tall, 5" deep, 2" wide
- Wi-Fi 6 - 2.4GHz (2x2), 5GHz (2x2)
- 2.5GE WAN* port
- 2.5GE LAN port
- Managed by Calix Service Cloud
* If wireless used for backhaul, port functions as LAN

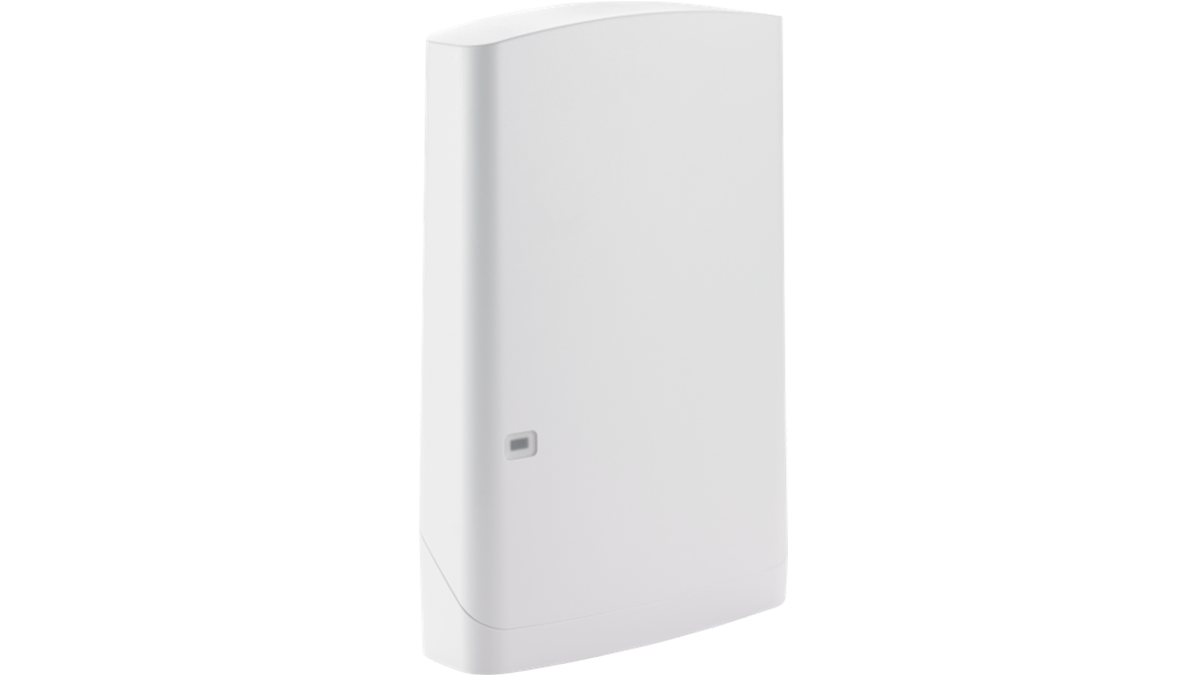

The GigaSpire u4hm is an outdoor satellite mesh solution designed to expand the Wi-Fi 6 indoor experience to the outdoors. Service providers can take advantage of the PoE capabilities, with easy and lower cost installations.
Product Attributes:
- Wi-Fi 6 - 2.4GHz (2x2), 5GHz (2x2)
- GE WAN* port
- GE LAN ports
- 802.3at PD – Power Over Ethernet
- Managed by Calix Service Cloud
* If wireless used for backhaul, port functions as LAN

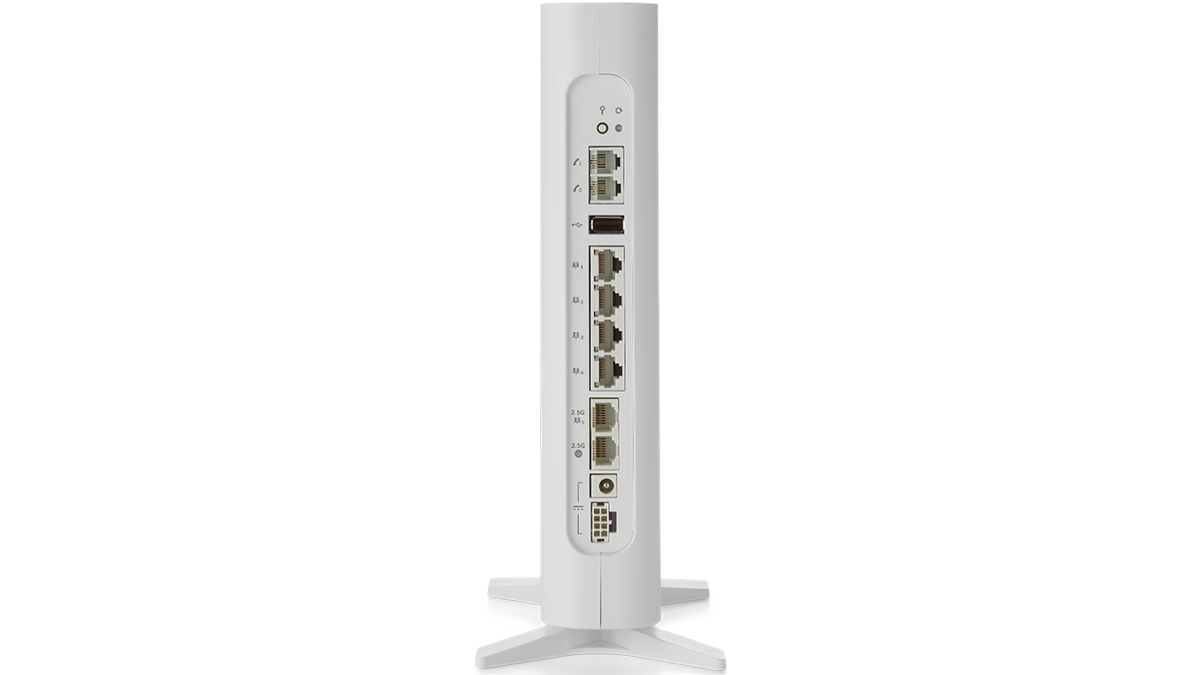

The GigaSpire u6.3 is the newest member of the re-designed Wi-Fi 6 system family delivering multi-gig performance and device connectivity.
Product Attributes:
- Integrated stand for desktop or wall mounting
- Wi-Fi 6 - 2.4GHz (2x2), 5GHz (4x4)
- 2.5GE WAN* port
- 2.5GE LAN port, 4 x GE LAN port
- 2 x POTS
- 2-pin and 8-pin power options

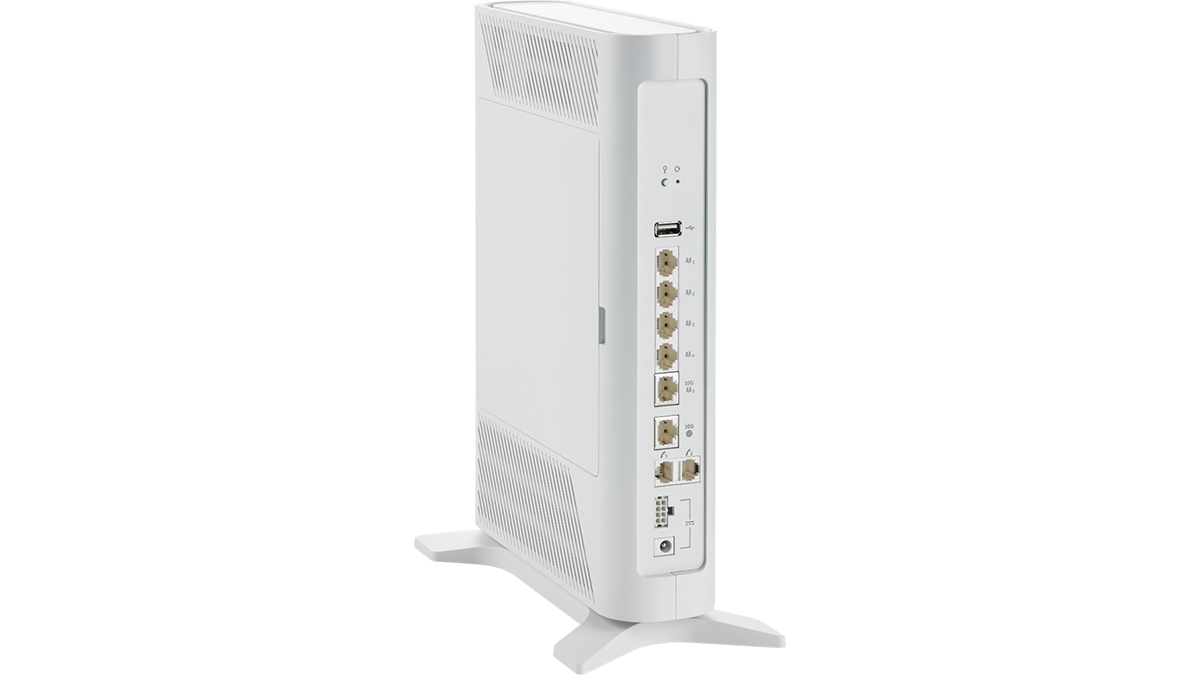

The GigaSpire u6t brings 10GE WAN/LAN connectivity to residential, business and MDU markets requiring high-speed performance for emerging bandwidth hungry applications and SaaS applications.
Product Attributes:
- Integrated stand for desktop and wall mounting
- Wi-Fi 6 - 2.4GHz (2x2), 5GHz (4x4)
- 10GE WAN port
- 10GE LAN port, 4 x GE LAN port
- 2 x POTS
- 2-pin and 8-pin power options

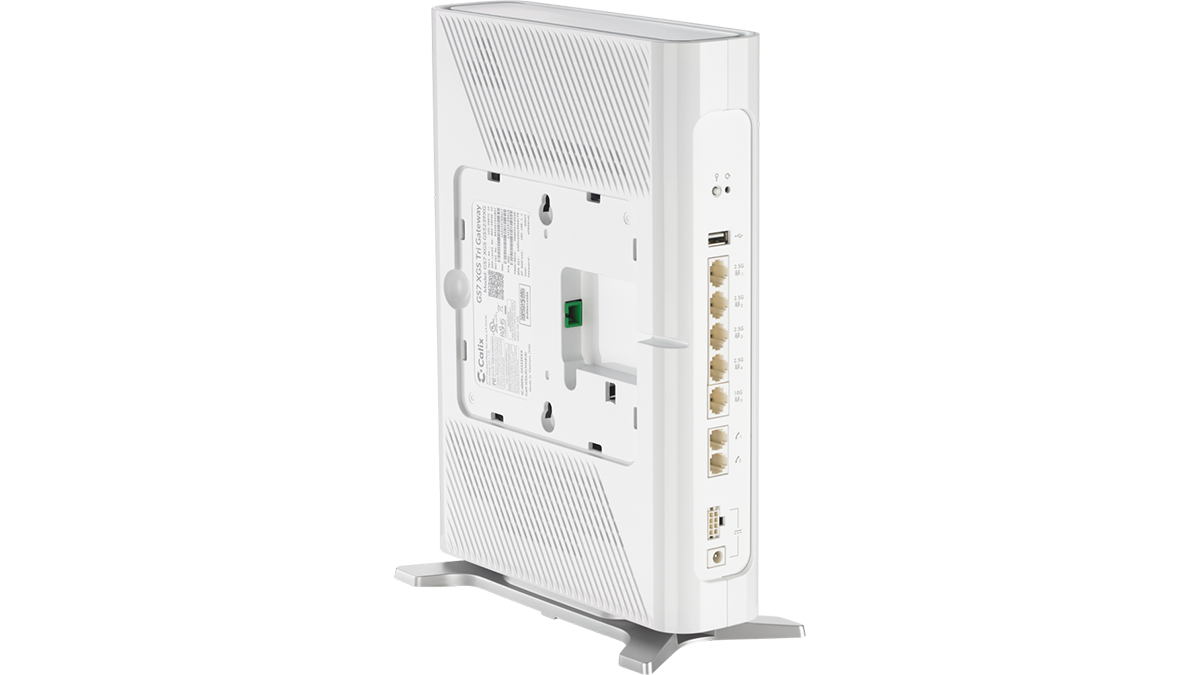

The GigaSpire u6txg is equipped with an XGS-PON ONT simplifying subscriber installations with a single system and offers 10GE LAN connectivity for high bandwidth applications.
Product Attributes:
- Integrated stand for desktop and wall mounting
- Wi-Fi 6 - 2.4GHz (2x2), 5GHz (4x4)
- XGS-PON WAN port
- 10GE LAN port, 4 x GE LAN port
- 2 x POTS
- 2-pin and 8-pin power options
The GigaSpire Wi-Fi 6 family is designed with simple plug-and-play connectivity, snapping right into the Unlimited Subscriber ecosystem.
Discover how the Unlimited Subscriber portfolio is the ideal on-premise solution for service providers who want to deliver an invaluable subscriber benefits to residential, multi-tenant and business customers
